| Features and functions:
1.The machine adopt sturdy steel structure, imported heavy duty motor.
2.Vertical pneumatic clamp cylinders can hold the profile during cutting, safety for operation.
3.The cutter is alloy saw plate with high precision and long service life
4.Spray mist cooling system can cool the saw blade fast.
5.The cutting angle is from +15 to -15degree, degree display system features precise angle setting.
6.The back cutting fixture is adjustable for larger cutting range.
7.Digital measurement display size stopper is optional.
8.CNC size stopper is optional.
| Technical parameter:
| Working air pressure | 0.5~0.8mpa |
| Air consumption | 100L/min |
| Input voltage | 3-phase, 380/415v, 50hz |
| Input power | 4.0kW |
| Saw Blade Diameter | 600mm |
| Saw blade speed | 2800r/min |
| Max cutting section | 150 x 150 mm ( at 900, from center point) |
| Cutting degree | +150 ~ -150 |
| Size Stopper length | Max. 3000mm |
| Main body dimensions | 1100x1250x1550mm |
| Overall dimensions | 7700x1250x1550mm (loading conveyor & size stopper 3m each) |

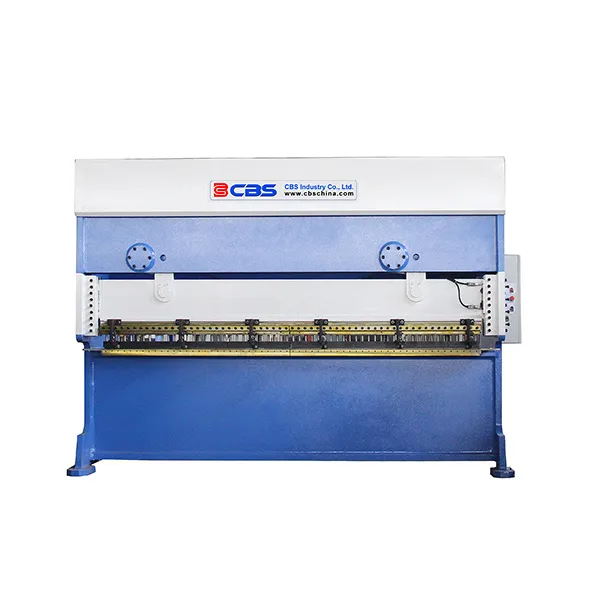

| Features and functions: 1.Thepunching machine is used for the aluminium formwork 80-600mm U Panel and 100x100~20...
| Features and functions: 1.The flattening machine is designed for aluminium formwork refurbishment work, used fo...
| Details: The machine has multiple processing to realize feeding, punching, countersinking, cutting and piece's ...
| Features and functions: 1.Used for installation of aluminum alloy windows and doors and the punching processing...
| Features and functions: 1. Friction Stir Welding (FSW) is a solid-state jointing process. There is no pollution...
| Features and functions: 1.The machine is used to press and fasten the profile with thermal barrier strips. Prof...
| Features and functions: 1. The machine is mainly used for all kinds of aluminium profiles cutting. 2. Loading t...
| Details: 1.Including ONE set KUKA KR10 1420 welding robot, with C4 control cabinet, DivicNET communication modu...
| Features and functions: 1.The punching machine is used for the aluminium formwork 80-600mm U Panel and 100x100~2...

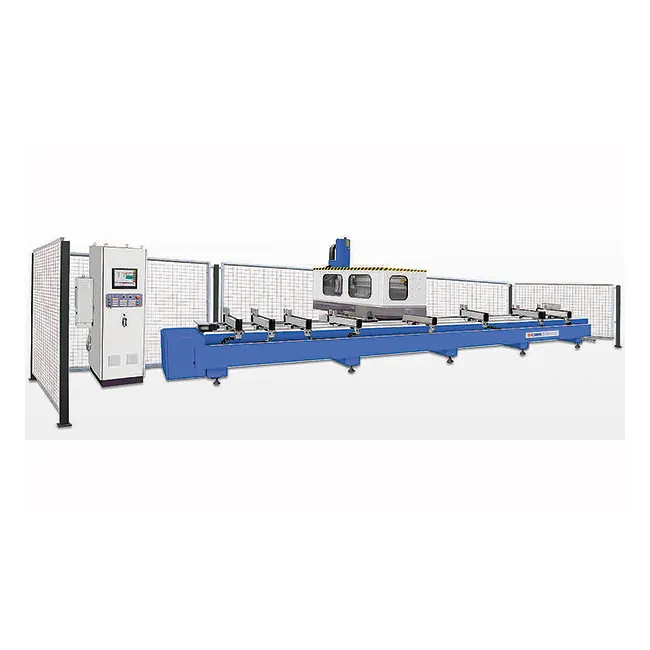

| Features and functions: 1. Advanced industrial CNC 4-axis profile machining systems, friendly machine interface ...

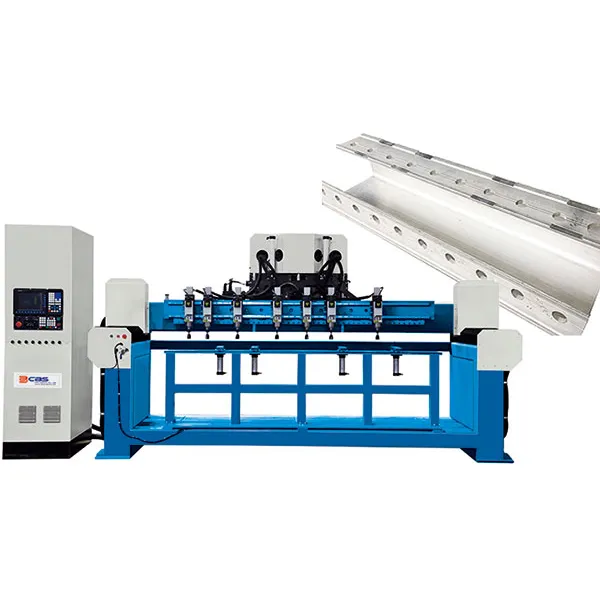

| Features: 1. Suitable for high efficiency automatic milling of slots in the aluminum profiles. 2.Auto locating ...
