| Features and functions: 1．The machine is the most advanced double-head cutting saw for all kinds aluminium profiles cutting. 2．The machine adopts Europe model with neat appearance and good style. 3．The control system adopts the new closed-loop system. 4．The directly connected blade adop...
| Features and functions:
1．The machine is the most advanced double-head cutting saw for all kinds aluminium profiles cutting.
2．The machine adopts Europe model with neat appearance and good style.
3．The control system adopts the new closed-loop system.
4．The directly connected blade adopts Lever-swing cutting type.
5．The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting.
6．The imported high precision blade makes the cutting surface smoother.
7．The cutting angle is auto adjustment through the important servo motor between 45°-157.5°.
8．Several profile processing dimension can be input one time and make continuous cutting.
9．The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
10．The right cutting head is driven by the imported servo motor, feature high speed and high precision.
11．The airproof device under the worktable has wonderful crumbs-cleaning effect.
12．The following saw cover keeps it working in the clean environment.
13．The stuff follow-up supporter can reduce the machine space.
14．The profile was clamped by two cylinders in every head, and keeps the cutting security.
15. It's an idea multi-function aluminium windows and doors profiles, industry aluminium profile double mitre cutting saw.
| Technical Parameter:
| Power supply | 380V 50Hz |
| Cutting motor power | 2x2.2 KW |
| Rotary Speed | 2800r/min |
| Servomotor power | 3x0.75Kw |
| Rotary Speed | 4050 r/min |
| Operation air pressure | 60L/min |
| Air consumption | 0.5-0.8 MPa |
| Blade specification | Φ500×Φ30×4.4Z=120 （Standard size） |
| Cutter feeding speed | Stepless |
| speed regulation | 0-3m/min |
| Cutter moving speed range | 0~20m/min |
| Cutting length | Max 6000mm, Min 480mm at 90°, Min 760mm at 45° |
| Cutting width | 120mm |
| Cutting height | 230mm |
| Cutting angle | 45°-157.5° any angle in the range Repeat locating length tolerance ±0.2mm |
| Cutting Profile Surface Plane | ≤0.10mm |
| Cutting Angle tolerance | ±5’ |
| Cutting Profile Surface Roughness | Ra12.5μm |
| Overall dimension | 7500mm×1500mm×1530mm |
| Features and functions: 1.The flattening machine is designed for aluminium formwork refurbishment work, used fo...

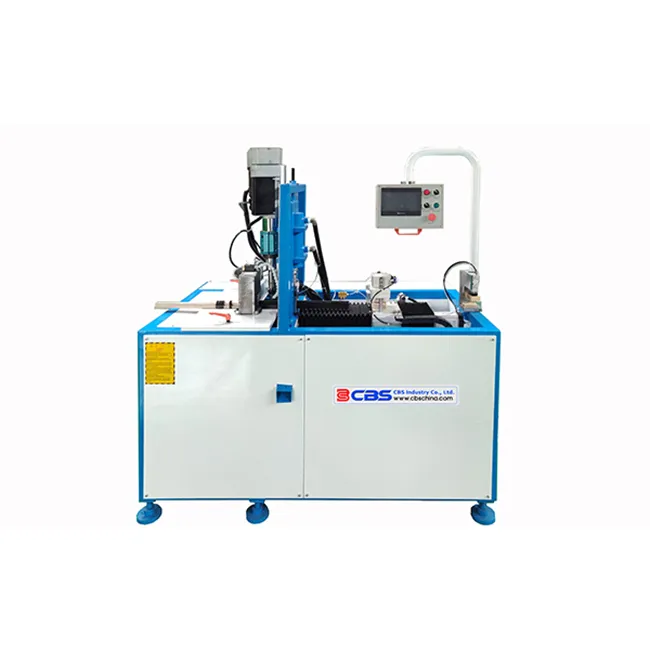

| Details: The machine have multiple processing to realize feeding, punching, tapping and piece's ejecting at sam...
| Details: The machine has multiple processing to realize feeding, double side holes drilling, Double side tappin...

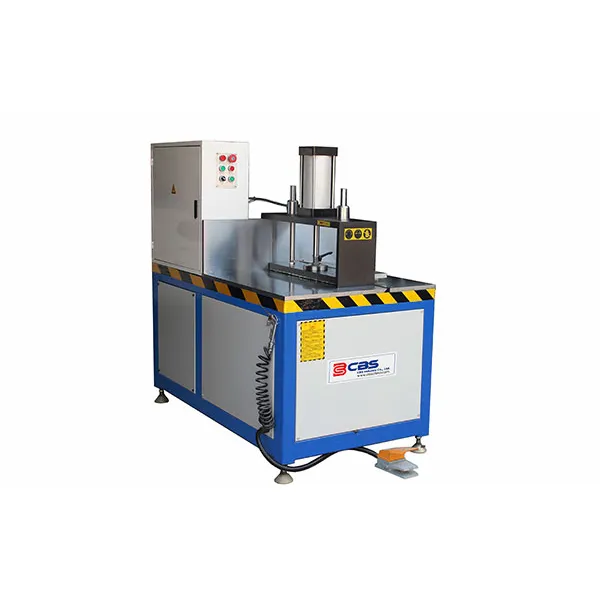

| Features and functions: 1. The machine is suitable for 45 degree chamfering of aluminium profile's end. 2. Heav...
