| Features and functions:
1.The machine is suitable for all kinds of large aluminum profiles 90 degree cutting, especial for aluminium formwork profiles cutting.
2.The automatic feeding manipulator can take profile and automatically feed according to the cutting list.
3.Saw blade feeding adopts linear bearing moving pair, the pneumatic feeding cylinder with hydraulic damping system which features smooth movement and excellent performance.
4.Compact structure, small footprint, high machining accuracy and high durability.
5.The worktable surface is specially treated for high durable.
6.Spray mist cooling system can cool the saw blade fast.
7.Extra large cutting range can cut many profile at one time pass through.
8.The cutting angle is 90 degrees only.
| Technical parameter:
| Working air pressure | 0.5~0.8mpa |
| Air consumption | 120L/min |
| Input voltage | 3-phase, 380v, 50hz |
| Input power | 4.0kW |
| Saw Blade Diameter | 500 or 550mm |
| Saw blade speed | 2800r/min |
| Max cutting section | 600x 80mm , 450x150mm or 600x95, 450x175mm |
| Cutting degree | 90 degree |
| Feeding speed | <=10m/min |
| Repeat sizing tolerance | +/-0.2mm |
| Degree tolerance | Less than 5’ |

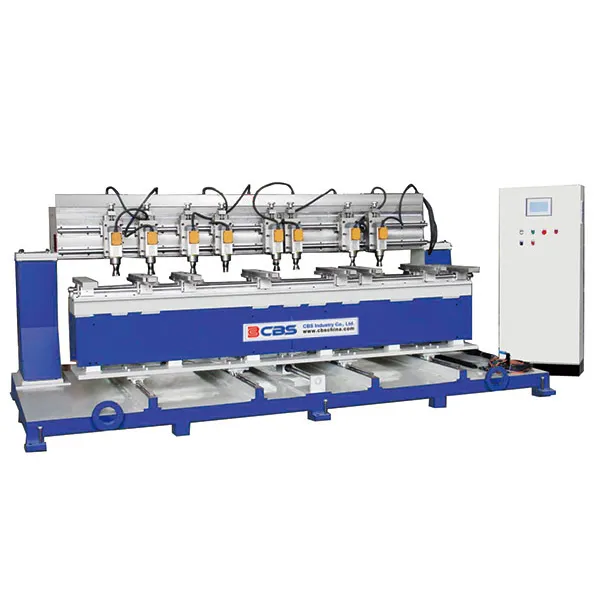

| Features and functions: 1.The machine is designed for aluminium formwork slots automatic milling. 2.Automatic l...
